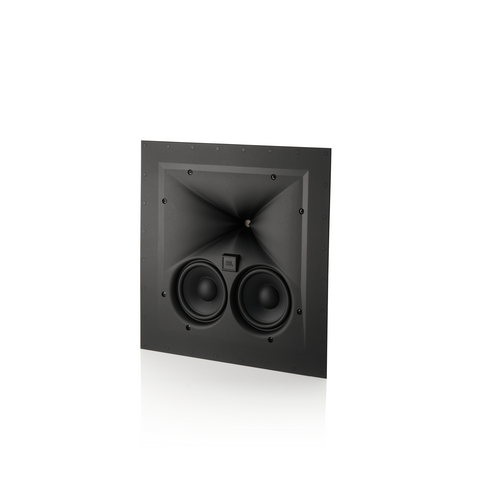

Part of the JBL Synthesis Custom Loudspeakers range, the SCL-3 offers the highest level of acoustic performance available from a flush-mount loudspeaker. Utilizing JBL Professional’s patented D2 compression driver technology, the SCL-3 is capable of delivering very high dynamics with remarkably low-distortion for clarity and intelligibility at virtually any volume level. The 2409H compression driver used in the SCL-3 is mated to JBL’s patented HighDefinition Imaging (HDI™) waveguide for remarkably uniform and predictable coverage over a wide area – eliminating the need for the speakers to be angled or aimed when installed. Low frequencies are delivered by two powerful cast-frame, Advanced Aluminum Matrix cone woofers operating in conjunction with the included MDF enclosure for consistent performance and minimal sonic intrusion into adjacent spaces. Premium network components, Bi-Wire and Bi-Amp capability, flexible mounting applications, and a ZeroBezel, magnetically attached grille leave no details unattended. The SCL-3 is the perfect solution for in-wall LCR, surround, or overhead height channel applications as part of JBL Synthesis home theater system.
.Speaker Type: Two-way In-Wall Loudspeaker
• Low Frequency Transducer: Dual 5-¼” (130mm) cast-frame, advanced aluminum matrix cone woofers
• Mid/High Frequency Transducer: D2-derived 1” (25mm) 2409H annular ring, Teonex® diaphragm compression driver
• Maximum Recommended Amplifier Power: 300 watts RMS
• Frequency Response (-6dB on-axis): 65 Hz – 33KHz
• Coverage area (-6dB @ 20 KHz): 90 x 60 deg, (-6dB @ 10 KHz): 110 x 90 deg (Hor. x Vert.)
• Sensitivity (2.83V@1m): 91dB
• Nominal Impedance: 6 Ohm
• Crossover Frequencies: 1.3 KHz
• Enclosure type: Sealed In-Wall Mount with included back box
• Inputs: Dual Gold-plated Five-way Binding Posts
• Dimensions (H x W x D): 16.5” x 16.5” x 6.01” (418mm x 418mm x 153mm)
• Weight: 24.3 lb (11.02 kg)
• Finishes: Matte Black
